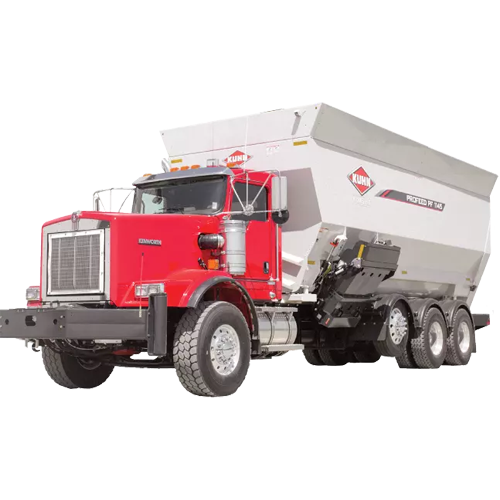

PF 100 Feed Delivery Box
Maximize Feeding Efficiency
The new KUHN Knight ProFeed® PF 100 Series delivery boxes are an efficient option for many large and extra-large farms, feedlots and ranches to feed more cattle per load. With a robust and durable design, the ProFeed 100 Series delivery boxes are reliable in every feeding application.
The twin-auger design guarantees a fast, thorough cleanout every time. The choice of standard or grain augers provides you with the ability to tailor your machine to match your feeding application. High-quality drive components and controls provide faster discharge and greater one-pass feeding capabilities. The PF 100 Series includes two models: the PF 1130 & PF 1145, both available with 5.5" and 17.75" extensions, resulting in capacities ranging from 1,000 ft3 to 1,450 ft3, each with a 50,000-pound maximum net load rating.
The twin-auger design guarantees a fast, thorough cleanout every time. The choice of standard or grain augers provides you with the ability to tailor your machine to match your feeding application. High-quality drive components and controls provide faster discharge and greater one-pass feeding capabilities. The PF 100 Series includes two models: the PF 1130 & PF 1145, both available with 5.5" and 17.75" extensions, resulting in capacities ranging from 1,000 ft3 to 1,450 ft3, each with a 50,000-pound maximum net load rating.
Features:
• Durable, High-Capacity Box: The PF 100 Series includes two models: the PF 1130 & PF 1145, both available with 5.5" and 17.75" extensions, resulting in capacities ranging from 1,000 ft3 to 1,450 ft3, each with a 50,000-pound maximum net load rating.
• Dependable, Heavy-Duty Drive: The PF delivery boxes offer many proven heavy-duty components. A 40:1 planetary gearbox is used for speed reduction into the rear of the unit. A splined cast plug is used for the driveshaft-to-sprocket connection. Simple, reliable sleeve bearings are used to maintain shaft alignment. A bolted flange connection is used to mate the drive with the augers.
• High-Capacity Discharge: Center-rotating augers bring the feed to the center of the discharge to increase overall capacity and provide a smooth, even discharge for all ration types. The 4-auger discharge comes with power tip-off and built-in magnets. Long-lasting, replaceable polyethylene chute liners prevent rust and limit wear.
• Dependable, Heavy-Duty Drive: The PF delivery boxes offer many proven heavy-duty components. A 40:1 planetary gearbox is used for speed reduction into the rear of the unit. A splined cast plug is used for the driveshaft-to-sprocket connection. Simple, reliable sleeve bearings are used to maintain shaft alignment. A bolted flange connection is used to mate the drive with the augers.
• High-Capacity Discharge: Center-rotating augers bring the feed to the center of the discharge to increase overall capacity and provide a smooth, even discharge for all ration types. The 4-auger discharge comes with power tip-off and built-in magnets. Long-lasting, replaceable polyethylene chute liners prevent rust and limit wear.
